Lathe accessories and tools

We offer a range made to our own design. Some examples are shown here but see our catalogue for the full range. We also stock or can obtain accessories by Axminster, Robert Sorby, Record and Planet

A drillchuck with
optional drawbar
and nut 		Drillchuck with drawbar Click on the picture
to see a bigger
one (12k) then click
the "back" button on
your browser
to return.
A good quality accurate drillchuck and key. 13mm capacity. Fitted with a special arbor which allows the use of a drawbar and conical nut to retain the chuck in the taper. This prevents spinning and enables the drillchuck to function as a miniature woodturning chuck in the headstock for tiny turnings. Only suitable for hollow spindles and non telescopic tailstock barrels.
Available in 1 or 2 morse taper. Price without drawbar & nut £22.70
Optional drawbar (6mm studding) and special nut £4.75

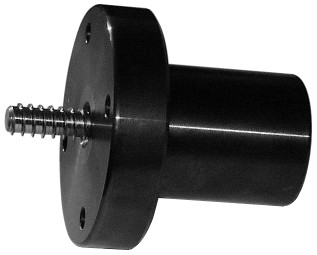

A really useful
screwchuck and
faceplate 		Handy faceplate and screwchuck Click on the picture
to see a bigger
one (12k) then click
the "back" button on
your browser
to return.
The high tensile steel parallel thread screw (8mm diameter) is removable leaving a 59mm faceplate. £29.25
Available in most threads up to 1,1/8"x 12 including 3/4" x 16 and 1" x 8 (69mm face).
Optional 6mm screw £6.95

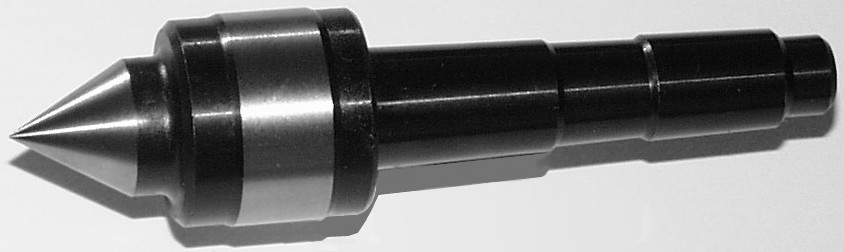

Professional
grade revolving
centres 		High quality live centre Click on the picture
to see a bigger
one (35k) then click
the "back" button on
your browser
to return.
Made in Sheffield from quality steel. 1 or 2 Morse taper £27.10
No play in bearings. Hardened and ground 60 degree point.
Just what you need for lamp drilling

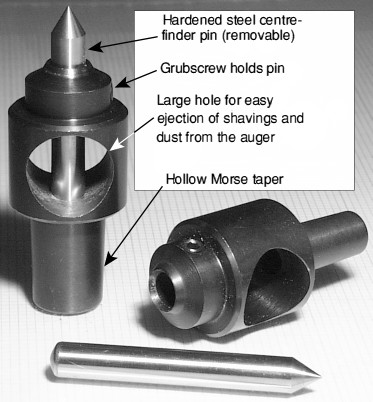

Improved
lamp-auger
guide and
hollow centre 		Improved Auger Bush Click on the picture
to see a bigger
one (39k) then click
the "back" button on
your browser
to return.
It has a large side hole to facilitate release of shavings from the auger and to prevent dust build-up jamming the auger in the tailstock. The auger does not have to be withdrawn all the way (just as far as the side hole) when clearing shavings so the whole drilling process is very much quicker and easier. The centre finder has a hardened 60 degree cone and can be extended and used as a miniature tailstock centre giving improved access to small turning work. Available in 1 or 2 morse taper

Price £15.65. With hex key and instructions.

Prices include VAT. Postage is extra   how to order


This page updated Sept04- contact us for latest prices and offers
